Manifolds & Linkages

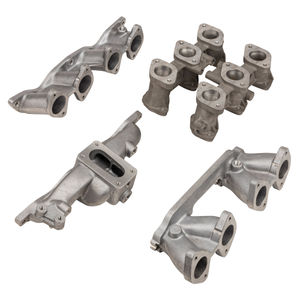

Inlet manifolds for motorsport vehicles are precision-engineered components designed to distribute the air-fuel mixture evenly to each cylinder, maximising engine performance and efficiency. These manifolds are typically made from high-strength materials such as aluminium or composite alloys, which offer excellent thermal conductivity and durability. The design of the inlet manifold is critical; it features optimised runner lengths and shapes to enhance airflow dynamics, reduce turbulence, and ensure that the air-fuel mixture reaches each cylinder with minimal restriction and maximum velocity. This precise distribution is crucial for achieving uniform combustion and maximising power output.

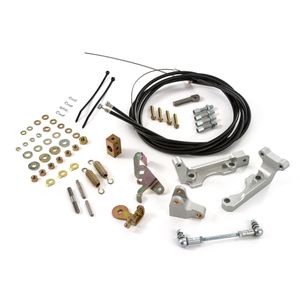

Linkages in motorsport vehicles, particularly those associated with the throttle and carburettor systems, are essential for synchronising the movement of multiple components. These linkages include adjustable rods, brackets, and connectors that ensure simultaneous and precise operation of the throttle bodies or carburettors. High-quality linkages are made from durable materials such as stainless steel or billet aluminium, providing the necessary strength and rigidity to withstand the stresses of high-performance driving. The precision engineering of these linkages ensures that there is no play or slack, which is vital for maintaining accurate throttle response and control.

The integration of inlet manifolds and linkages in motorsport vehicles demands meticulous attention to detail to ensure optimal performance. The manifold must be perfectly matched to the engine's characteristics, with port matching and smooth transitions to minimise flow disruptions. Linkages must be carefully adjusted and aligned to guarantee that all throttle bodies or carburettors operate in unison, providing a balanced air-fuel mixture to each cylinder. This coordination enhances engine efficiency, responsiveness, and power delivery, making inlet manifolds and linkages critical components in the high-stakes environment of motorsport racing.
